#include <exports_mapper.h>

Public Member Functions
size_t	add_to_lookup (std::string moduleName, HMODULE modulePtr, size_t moduleSize, ULONGLONG moduleBase)

size_t	add_to_lookup (std::string moduleName, HMODULE modulePtr, ULONGLONG moduleBase)

size_t	add_to_lookup (std::string moduleName, HMODULE modulePtr)

const std::set< ExportedFunc > *	find_exports_by_va (ULONGLONG va) const

ULONGLONG	find_dll_base_by_func_va (ULONGLONG func_rva) const

std::string	get_dll_path (ULONGLONG base) const

std::string	get_dll_path (std::string short_name) const

size_t	get_dll_paths (IN std::string short_name, OUT std::set< std::string > &paths) const

std::string	get_dll_fullname (std::string short_name) const

const ExportedFunc *	find_export_by_va (ULONGLONG va) const

void	print_va_to_func (std::stringstream &stream) const

void	print_func_to_va (std::stringstream &stream) const

Protected Member Functions
void	associateVaAndFunc (ULONGLONG va, const ExportedFunc &func)

Protected Attributes
std::map< ULONGLONG, std::set< ExportedFunc > >	va_to_func

std::map< ExportedFunc, std::set< ExportedFunc > >	forwarders_lookup

std::map< ExportedFunc, ULONGLONG >	func_to_va

std::map< std::string, std::set< ULONGLONG > >	dll_shortname_to_base

std::map< ULONGLONG, DllInfo >	dll_base_to_info

Detailed Description

Definition at line 61 of file exports_mapper.h.

Member Function Documentation

◆ add_to_lookup() [1/3]

size_t peconv::ExportsMapper::add_to_lookup	(	std::string	moduleName,
		HMODULE	modulePtr )

inline

Appends the given DLL to the lookup table of exported functions. Returns the number of functions exported from this DLL (not forwarded). Assumes that the module was relocated to the same address as is the address of the given buffer (modulePtr). (A wrapper for the case if we are adding a DLL that was loaded within the current process.)

Parameters

moduleName	: name of the DLL
modulePtr	: buffer containing the DLL in a Virtual format.

Definition at line 92 of file exports_mapper.h.

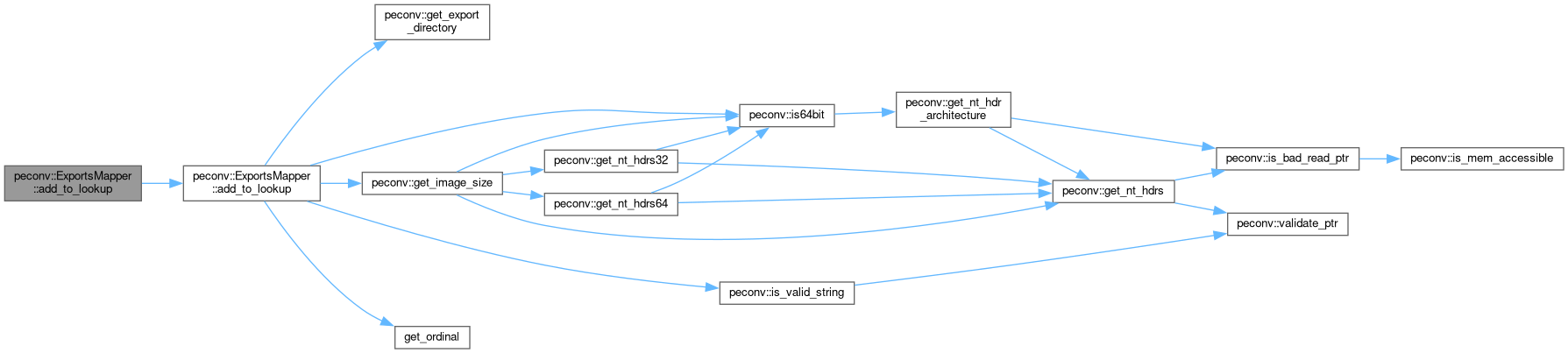

Here is the call graph for this function:

◆ add_to_lookup() [2/3]

size_t ExportsMapper::add_to_lookup	(	std::string	moduleName,
		HMODULE	modulePtr,
		size_t	moduleSize,
		ULONGLONG	moduleBase )

Appends the given DLL to the lookup table of exported functions. Returns the number of functions exported from this DLL (not forwarded).

Parameters

moduleName	: name of the DLL
modulePtr	: buffer containing the DLL in a Virtual format
moduleSize	: size of the DLL buffer. If moduleSize == 0, the ImageSize from the PE headers will be used.
moduleBase	: a base address to which the given DLL was relocated

Definition at line 200 of file exports_mapper.cpp.

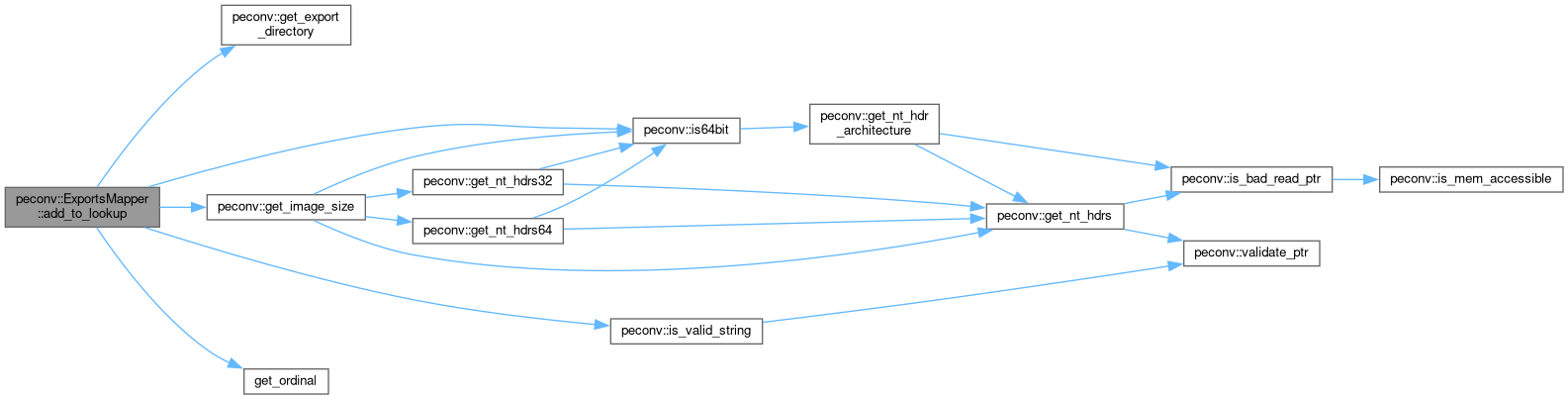

Here is the call graph for this function:

◆ add_to_lookup() [3/3]

size_t peconv::ExportsMapper::add_to_lookup	(	std::string	moduleName,
		HMODULE	modulePtr,
		ULONGLONG	moduleBase )

inline

Appends the given DLL to the lookup table of exported functions. Returns the number of functions exported from this DLL (not forwarded).

Parameters

moduleName	: name of the DLL
modulePtr	: buffer containing the DLL in a Virtual format
moduleBase	: a base address to which the given DLL was relocated

Definition at line 80 of file exports_mapper.h.

Here is the call graph for this function:

◆ associateVaAndFunc()

void peconv::ExportsMapper::associateVaAndFunc	(	ULONGLONG	va,
		const ExportedFunc &	func )

inlineprotected

Add a function and a VA into a mutual mapping.

Definition at line 195 of file exports_mapper.h.

◆ find_dll_base_by_func_va()

ULONGLONG peconv::ExportsMapper::find_dll_base_by_func_va ( ULONGLONG func_rva ) const

inline

Retrieve the base of the DLL containing the given function. If not found, returns 0.

Definition at line 113 of file exports_mapper.h.

◆ find_export_by_va()

const ExportedFunc * peconv::ExportsMapper::find_export_by_va ( ULONGLONG va ) const

inline

Find an Exported Function that can be mapped to the given VA,

Definition at line 167 of file exports_mapper.h.

Here is the call graph for this function:

◆ find_exports_by_va()

const std::set< ExportedFunc > * peconv::ExportsMapper::find_exports_by_va ( ULONGLONG va ) const

inline

Find the set of Exported Functions that can be mapped to the given VA. Includes forwarders, and function aliases.

Definition at line 100 of file exports_mapper.h.

◆ get_dll_fullname()

std::string peconv::ExportsMapper::get_dll_fullname ( std::string short_name ) const

inline

Retrieve the full name of the DLL (including the extension) using its short name (without the extension).

Definition at line 156 of file exports_mapper.h.

Here is the call graph for this function:

◆ get_dll_path() [1/2]

std::string ExportsMapper::get_dll_path ( std::string short_name ) const

Retrieve the path of the DLL with the given short name. If multiple paths are mapped to the same short name, it retrieves the first one.

Definition at line 293 of file exports_mapper.cpp.

Here is the call graph for this function:

◆ get_dll_path() [2/2]

std::string peconv::ExportsMapper::get_dll_path ( ULONGLONG base ) const

inline

Retrieve the full path of the DLL with the given module base.

Definition at line 133 of file exports_mapper.h.

◆ get_dll_paths()

size_t ExportsMapper::get_dll_paths	(	IN std::string	short_name,
		OUT std::set< std::string > &	paths ) const

Retrieve the paths of the DLL with the given short name.

Definition at line 275 of file exports_mapper.cpp.

Here is the call graph for this function:

◆ print_func_to_va()

void ExportsMapper::print_func_to_va ( std::stringstream & stream ) const

Definition at line 25 of file exports_mapper.cpp.

Here is the call graph for this function:

◆ print_va_to_func()

void ExportsMapper::print_va_to_func ( std::stringstream & stream ) const

Definition at line 8 of file exports_mapper.cpp.

Here is the call graph for this function:

Member Data Documentation

◆ dll_base_to_info

std::map<ULONGLONG, DllInfo> peconv::ExportsMapper::dll_base_to_info

protected

Definition at line 221 of file exports_mapper.h.

◆ dll_shortname_to_base

std::map<std::string, std::set<ULONGLONG> > peconv::ExportsMapper::dll_shortname_to_base

protected

A map associating DLL shortname with the base(s) at which it was mapped

Definition at line 219 of file exports_mapper.h.

◆ forwarders_lookup

std::map<ExportedFunc, std::set<ExportedFunc> > peconv::ExportsMapper::forwarders_lookup

protected

A map associating an exported functions with its forwarders.

Definition at line 209 of file exports_mapper.h.

◆ func_to_va

std::map<ExportedFunc, ULONGLONG> peconv::ExportsMapper::func_to_va

protected

A map associating an exported functions with its VA.

Definition at line 214 of file exports_mapper.h.

◆ va_to_func

std::map<ULONGLONG, std::set<ExportedFunc> > peconv::ExportsMapper::va_to_func

protected

A map associating VA of the function with the related exports.

Definition at line 204 of file exports_mapper.h.

The documentation for this class was generated from the following files:

libpeconv/include/peconv/exports_mapper.h
libpeconv/src/exports_mapper.cpp
